The advertised range of the fob(s) to the antenna is 50 feet but in most cases it is much further. The length of the antenna cable is 6ft and we do not offer extensions for the antenna mainly due to this strong signal range. There is a signal strength test that is part of the app setup that will verify the signal is strong enough.
Antenna Installation
Use the tape to mount the antenna in the console, overhead cabinet, or behind the helm. External antenna installations may require marine silicone sealant and a through‑hole fitting.
- Mount the antenna in an unobstructed location at least 30 cm (10 in.) away from other electronic equipment.
- Connect the antenna harness to the hub.
- Secure the antenna harness with cable ties.

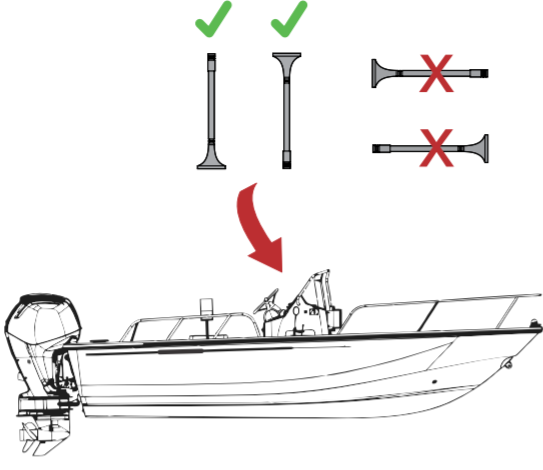

IMPORTANT: The antenna must be mounted in a vertical position as indicated by the green check marks in the following illustration.
